Double ends wire cut strip twist dipping machine automatic cable strip
Double ends wire cut strip twist dipping machine automatic cable strip
  • Double ends wire cut strip twist dipping machine automatic cable strip

  • Model No : WPM-ST01Z

  • Double Ends Wire Cut Strip Twist Dipping Machine, Automatic Cable Stripping Twisting Cutting Tinning Manufacturing Machine, Double Ends Wire Cut Strip Twisting Tinning Machine
    1. The long and short line switching mode does not need to replace the clamping device
    2. Realize motor electric twisting, and realize two twisting methods of positive and negative. The speed of twisting can be adjusted quickly on the touch screen.
    3. Equipped with a multi-stage peeling function
    4. The front and rear peeling stroke is increased, and the peeling stroke can be made larger;
    5. The ultra-wide knife edge is beneficial to protect the core wire, and the ultra-large leaking rubber material port is equipped with a blowing rubber blowing device based on air suction to further ensure that the rubber is collected clean
    6. Realize the motor rotation to scrape tin, and avoid air pressure interference.
    7. The heater adopts a hot runner device and has a long service life;
    8. There are pipeline recovery devices for pine perfume, tin slag, tin ash, etc.
    9. It is equipped with a smoke recovery device to keep the machine clean for a long time and maintain a good working environment in the workshop;
    10. The machine parts are made of anti-corrosion materials to avoid corrosion; low noise, high precision, high efficiency, long service life, and high-cost performance

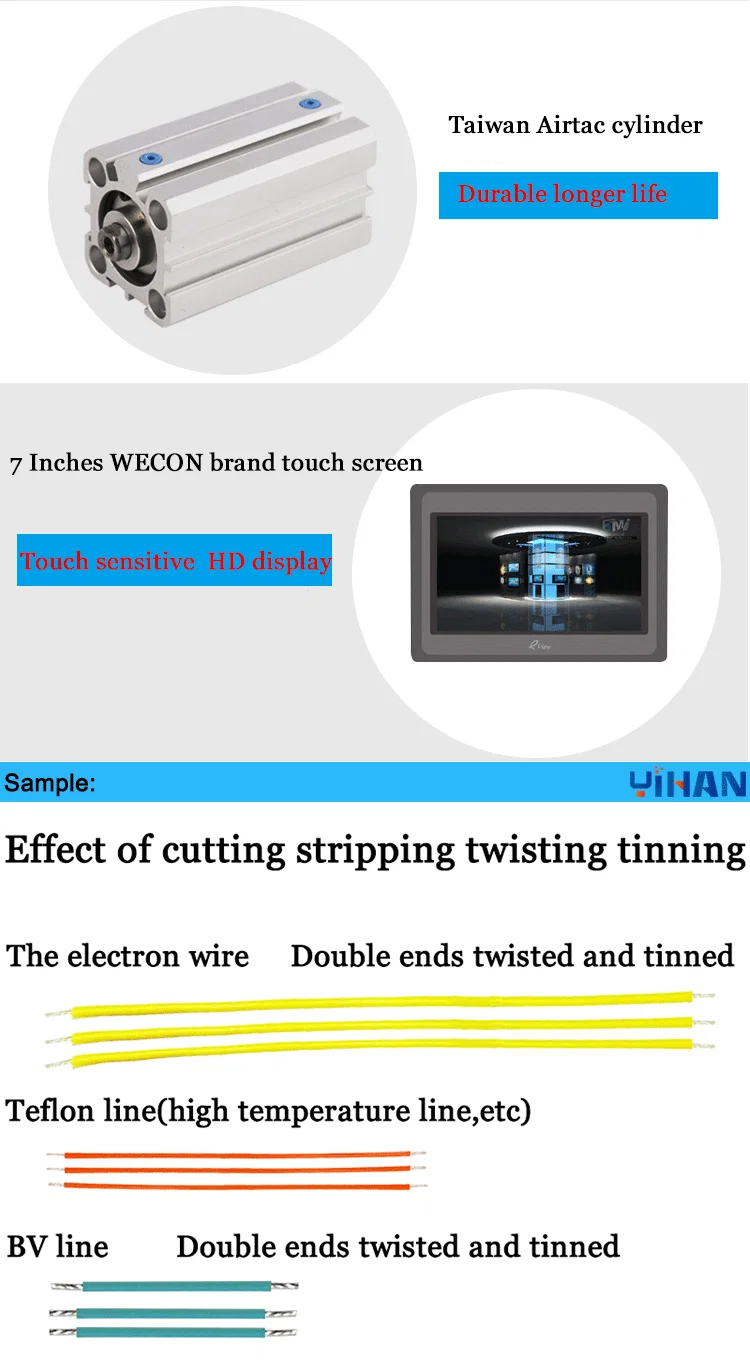

    wire cutting, single-ended double-ended stripping, single-ended double-ended tinning, single-ended double-ended twisted wire, one end double-ended half-stripped, both ends half-stripped.

  • Inquiry now
Detailed description Double ends wire cut strip twist dipping machine automatic cable stripping twisting cutting tinning manufacturing machine



1. The long and short line switching mode does not need to replace the clamping device
2. Realize motor electric twisting, and realize two twisting methods of positive and negative. The speed of twisting can be adjusted quickly on the touch screen.
3. Equipped with a multi-stage peeling function
4. The front and rear peeling stroke is increased, and the peeling stroke can be made larger;
5. The ultra-wide knife edge is beneficial to protect the core wire, and the ultra-large leaking rubber material port is equipped with a blowing rubber blowing device based on air suction to further ensure that the rubber is collected clean
6. Realize the motor rotation to scrape tin, and avoid air pressure interference.
7. The heater adopts a hot runner device and has a long service life;
8. There are pipeline recovery devices for pine perfume, tin slag, tin ash, etc.
9. It is equipped with a smoke recovery device to keep the machine clean for a long time and maintain a good working environment in the workshop;
10. The machine parts are made of anti-corrosion materials to avoid corrosion; low noise, high precision, high efficiency, long service life, and high-cost performance
wire cutting, single-ended double-ended stripping, single-ended double-ended tinning, single-ended double-ended twisted wire, one end double-ended half-stripped, both ends half-stripped.
Electronic wire, high-temperature wire, silicone wire, halogen-free wire, double parallel wire, flat sheathed wire, and flat wire, need to be customized according to the wire
Product name Fully automatic double-head soldering machine (manipulator) WPM-ST01Z
Chinese and English switching Provide
Power supply AC 220V/50/60HZ single phase 1300W
Standard production capacity 5K-15K(Depending on the wire)
Cutting length 30MM-590MM (can be customized according to customer requirements)
Stripping length 0.1-8MM (9-20 needs to be customized)
Twist length 3.5-8MM
Dip in length 1MM-8MM
Air pressure 0.5-0.7MPA (clean and dry air is required)
Size Length 1400* width 800* height 1500 (mm)
Wooden box size length 1500* width 900* height 1720 (MM)
Weight About 350kg (gross weight after the wooden box is packed: about 460KG)
Wire Cut Strip Twist Dipping Machine, Automatic Cable Stripping Twisting Cutting Tinning Manufacturing Machine, Double Ends Wire Cut Strip Twisting Tinning Machine Wire Cut Strip Twist Dipping Machine, Automatic Cable Stripping Twisting Cutting Tinning Manufacturing Machinespare part of Wire Cut Strip Twist Dipping Machine, Automatic Cable Stripping Twisting Cutting Tinning Manufacturing Machine, Double Ends Wire Cut Strip Twisting Tinning Machine Wire Cut Strip Twist Dipping Machine, Automatic Cable Stripping Twisting Cutting Tinning Manufacturing Machine
