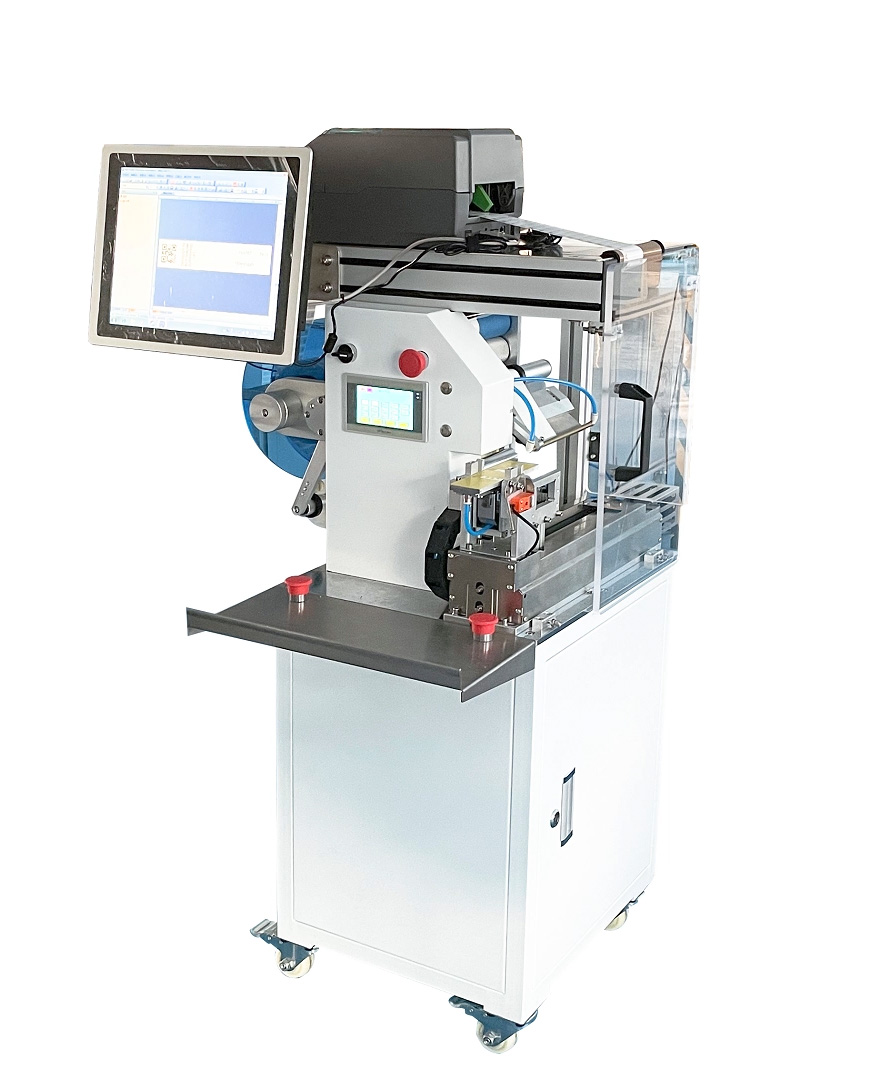

I. Product Overview
The JW-T107 Semi-Automatic Wire Folding and
Labeling Machine is an efficient labeling equipment designed for the folding
and labeling needs of various small and medium-sized products. Adopting
customized fixtures and precise control technology, the equipment can adapt to
labeling scenarios of various specifications, combining flexibility and
stability. It is widely used in wire, daily necessities, food packaging and
other industries, which can greatly improve labeling efficiency and
standardization, and reduce human operation errors.
II. Core Technical Parameters
|
Parameter Category
|
Specific Specifications
|
|
Applicable label roll
specifications
|
Inner diameter: ￠76mm, Outer diameter: ￠240mm
|
|
Labeling accuracy
|
±0.5-1mm (excluding product
and label itself errors)
|
|
Labeling speed
|
900-1000pcs/H (actual speed
depends on label size and operator proficiency)
|
|
Applicable wire diameter range
|
Standard: 4MM-10MM;
Customization available for sizes beyond this range
|
|
Applicable label
specifications
|
Length: 10mm～40mm (customization available
for other sizes); Width (folding direction): 30mm～130mm
|
|
Overall machine dimensions
|
Approximately
650mm×780mm×1100mm (Length×Width×Height)
|
|
Applicable power supply
|
220V/50HZ, Rated power: 0.25KW
|
III. Main Configuration Details
(I) Core Mechanism Configuration
|
Mechanism Category
|
Mechanism Name
|
Quantity
|
Main Materials
|
|
Basic execution mechanisms
|
Unwinding mechanism
|
1 set
|
Stainless steel, Acrylic,
Aluminum alloy
|
|
|
Label guiding mechanism
|
1 set
|
Aluminum alloy
|
|
|
Label pressing mechanism
|
2 sets
|
Aluminum alloy, Manganese
sheet
|
|
|
Label peeling mechanism
|
1 set
|
Stainless steel, Aluminum
alloy
|
|
|
Traction mechanism
|
1 set
|
Aluminum alloy, Steel,
Rubber-covered roller
|
|
|
Rewinding mechanism
|
1 set
|
Stainless steel, POM
(Polyoxymethylene)
|
|
|
Folding mechanism
|
1 set
|
Aluminum alloy, Stainless
steel
|
|
Frame and auxiliary structures
|
Frame
|
1 set
|
Steel
|
|
|
Electrical box
|
1 set
|
Painted sheet metal
|
|
|
Slide rail
|
1 set
|
HIWIN (Taiwan)/Domestic
high-quality brand
|
|
|
Adjustment base
|
1 set
|
Silver branch, Aluminum
material, Bearing
|
|
|
Lead screw
|
1 set
|
TBI/Domestic high-quality
brand
|
(II) Key Electrical Configuration
|
Electrical Category
|
Electrical Name
|
Quantity
|
Brand Option
|
|
Control core
|
PLC controller
|
1 set
|
Wecon
|
|
|
Touch screen
|
1 set
|
Wecon
|
|
Drive system
|
Traction motor
|
1 set
|
Keli'er/Ruitte
|
|
|
Traction motor driver
|
1 set
|
Keli'er/Ruitte
|
|
|
Label feeding motor &
driver
|
1 set
|
Keli'er/Ruitte
|
|
Detection and auxiliary
electrical
|
Label detection sensor
|
1 set
|
Sick (Germany)/Boyi Jingke
|
|
|
Switching power supply
|
1 set
|
Mean Well (Taiwan)
|
|
Pneumatic components
|
Cylinder
|
2 sets
|
Airtac/Xingchen
|
|
|
Solenoid valve
|
6 pieces
|
Airtac
|
|
|
Vacuum generator
|
1 set
|
SNS
|
IV. Basic Functions and Application Scenarios
(I) Core Functions
1. Folding and labeling technology: Adopts precise
folding and labeling method with customized fixtures, which can realize stable
labeling of products with different specifications, ensuring flat label
attachment and accurate positioning.
2. Flexible adaptation capability: Can quickly switch
to adapt to the labeling needs of wires, pipes, small daily necessities and
other products without large-scale equipment adjustment, with strong
compatibility.
3. Humanized operation design: Equipped with
professional touch screen and PLC control system, featuring clear operation
logic and easy use, which reduces the cost of personnel training.
(II) Typical Application Scenarios
•Electronic wire category: Folding and labeling of
power cords, data cables, earphone cables, etc.;
•Plastic and daily necessities category: Plastic
pipes, hangers, tableware, disposable bowls and plates, etc.;
• Food packaging category: Folding and labeling of
lollipops, jelly and other snacks with airplane hole hanging labels;
• Others: Small and medium-sized products that
require folding and labeling or hanging hole labeling.
V. Optional Functions
1. Online printing and labeling module: Optional
barcode printer + computer + professional software, which can print dynamic
information such as barcodes, QR codes on labels in real time, realizing
integrated "printing-labeling" operation;
2.Circular wire circumferential labeling
customization: Supports customization of full-circle wrapping labeling function
for circular wire products to meet the labeling needs of special products. For
details, please consult relevant business personnel.
