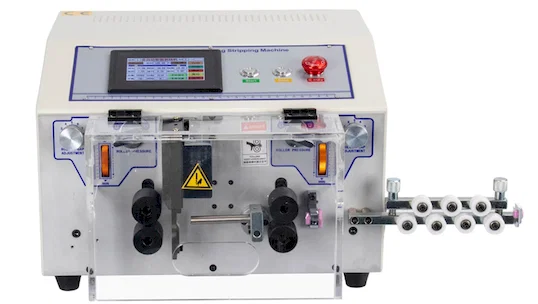

Touch Screen Controlled Wire Stripping and Cutting Machine (0.1-8mm²)

Name: Touch Screen Controlled Wire Stripping and Cutting Machin...
Brand: JINGWEI
SKU: WPM-JES
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-JES
Touch Screen Control Wire Stripping Cutting Machine for 0.1-8mm2 WPM-JES,Wire Cutting And Stripping Machine, Automatic Wire Cable Cutting And Stripping Machine, Wire Stripping Machine
Technical parameters:
ModelWPM-JES
Voltage AC 220V/110V 50/60 Hz
Power 300W
Cutting length 1-9999 mm
Cutting tolerance (0.2+/- 0.002 by L) mm
Inquiry now

Detailed description

Touch Screen Control Wire Stripping Cutting Machine for 0.1-8mm2 WPM-JES AWG8-AWG28 220V 110V Optional
Product Description
The product function characteristics:
Collection and integration, the microcomputer automatic computer for the stripline machine is a kind introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.
Our product is to use LCD screen man-machine dialogue mode, with a nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. The wire length can be set arbitrarily, thrum and the line end parameters can also be according to the customer's request to change, different degrees of finish stripping wires, also has the high tension line of line, the casing of the shear, etc. Function

Applications:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, Teflon, glass wire, etc.

Technical parameters:
Model WPM-JES
Voltage AC 220V/110V 50/60 Hz
Power 300W
Cutting length 1-9999 mm
Cutting tolerance (0.2+/- 0.002 by L) mm
Cut off the error can be modified
Stripping length Front end 0-50mm, Rear end 0-50 mm
Middle strip cut 11 place strip
Cutting wire core section 0.1-8mm2 (AWG8 #-AWG28 #)
Max cut diameter 10
Optimal stripped wire For PVC/Teflon/silica gel line /. Glass fiber cables, etc.
The blade material is Hard tungsten steel (import BaiGang optional)
Peel linear velocity (a/hour) L = 100 mm, 3000-5000 PCS/h (high yield)
Touch Screen Control Wire Stripping Cutting Machine for 0.1-8mm2 WPM-JES, Wire Cutting And Stripping Machine, Automatic Wire Cable Cutting And Stripping Machine, Wire Stripping Machine
