Fully Automatic Wire Cut, Strip, Wind, Twist, and Tie Machine

• Model No: WPM-02SL

• Full automatic wire cutting, stripping, winding, twisting and tying machines WPM-02SL, as well as an automatic wire coiling machine are available.
  Wire outer diameter ≤ 5 mm
  Winding part distance 70 - 150 mm
  Winding length ≤ 10 m
  Winding speed Adjustable
  Tying outer diameter ≤ 20 mm

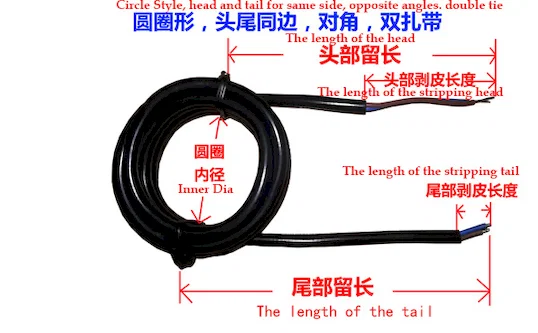

  Wirehead length 40 - 100 mm
  Wire tail length 40 - 200 mm
  Productivity 420 pcs./h (winding length = 5 m)
  Compressed air connection 0.55 - 0.7 MPa
  Power supply 110, 220 V (50 - 60 Hz)
  Power 1.5 kW
  Dimension 750 * 1550 * 1850 mm
  Weight 600 kg
